OUR PRODUCT

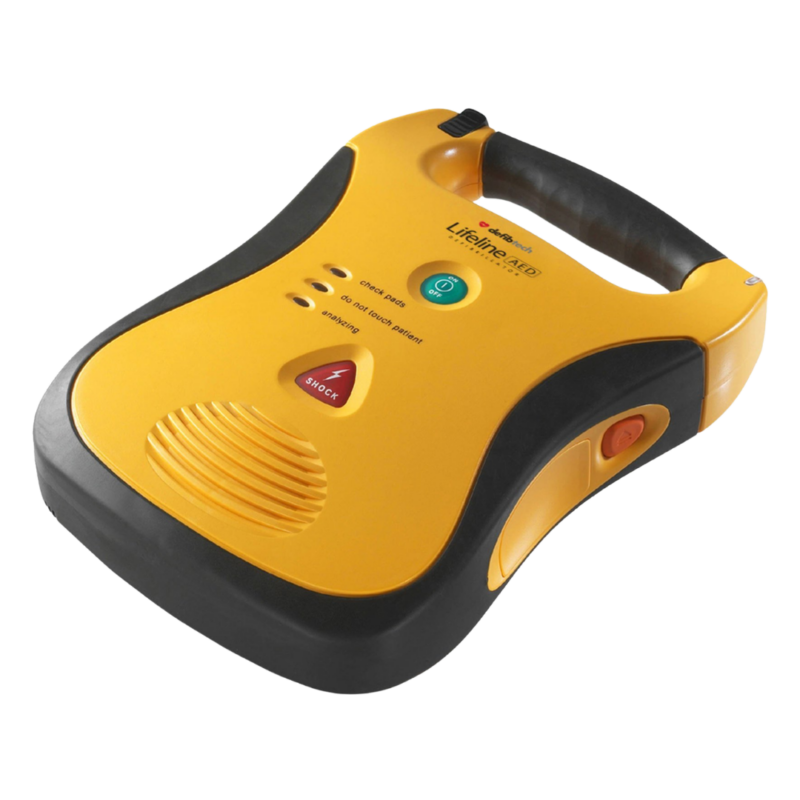

Lifeline AED Semi-Automatic Defibrillator
Life-saving technology engineered for both first responders and everyday people. So simple, even non-medical personnel can effectively save lives.
WHY LIFELINE AED
AHA compliant
Exceeds American Heart Association performance recommendations with advanced biphasic shock waveform.
Easy for anyone to use
Clear voice prompts and metronome-paced CPR pacing guide untrained users through every step.
Rapid shock delivery
Charges and delivers a shock in under 9 seconds — every second matters in cardiac arrest.
Daily self-test
Automatic daily, weekly, monthly and quarterly checks ensure the unit is always ready when called upon.
IP54 dust & splash resistant
Suitable for indoor and protected outdoor environments — splash-proof and dust-protected.
Military-grade durability
Tested to MIL-STD-810F drop standard — survives a 1-metre drop on any edge, corner, or surface.
TECHNICAL SPECIFICATIONS
Built to medical-grade standards
Click any category below to view detailed specifications. Full technical datasheet available in the downloadable brochure.
Type | Semi-automatic external defibrillator |
Model | DDU-100A / DDU-100E |
Waveform | Biphasic Truncated Exponential (impedance compensated) |
Energy output | Adult: 150 Joules | Pediatric: 50 Joules |
Charge time | Under 9 seconds (DBP-1400) | Under 6 seconds (DBP-2800) |
Voice prompts | Extensive voice prompts guide users through operation and CPR |
CPR pacing | Built-in metronome |
Dimensions | 22 × 30 × 7 cm (8.5 × 11.8 × 2.7 in) |
Weight | 1.9 kg (with DBP-1400) / 2.0 kg (with DBP-2800) |
Standard Battery — DBP-1400
| Power | 15V, 1400 mAh |
| Capacity | 125 shocks / 8 hours continuous |
| Standby life | 5 years |
| Type | Lithium/Manganese Dioxide — disposable, non-rechargeable |
High Capacity Battery — DBP-2800
| Power | 15V, 2800 mAh |
| Capacity | 300 shocks / 16 hours continuous |
| Standby life | 7 years |
| Type | Lithium/Manganese Dioxide — disposable, non-rechargeable |
Adult pads | Model DDP-100 — pre-connected, single-use, self-adhesive |
Child / infant pads | Model DDP-200P — pre-connected, single-use, self-adhesive |
Surface area | Adult: 103 cm² / pad | Child: 50 cm² / pad |
Pad placement | Adult: Anterior / Anterior | Child / Infant: Anterior / Posterior |
Cable length | 48 in (122 cm) |
Operating temperature | 0 to 50°C (32 to 122°F) |
Humidity | 5% – 95% non-condensing |
Altitude | -500 to 15,000 ft (-150 to 4500 m) |
Sealing | IEC 60529 IP54 — splash-proof, dust-protected (with battery pack installed) |
Shock / drop | MIL-STD-810F 516.5 Procedure IV — 1 m drop on any edge, corner or surface |
Vibration | Ground, helicopter and jet aircraft tested per MIL-STD and RTCA standards |
ACCESSORIES & CONSUMABLES
Everything you need for a complete AED setup
Beyond the defibrillator itself, we supply every consumable, replacement part and installation accessory needed to keep your AED ready and visible — all genuine Defibtech and Vitalfour items.
Adult AED pads
DDP-100
Pre-connected, single-use defibrillation pads for adults and children 8 years and older. Self-adhesive with integrated cable.

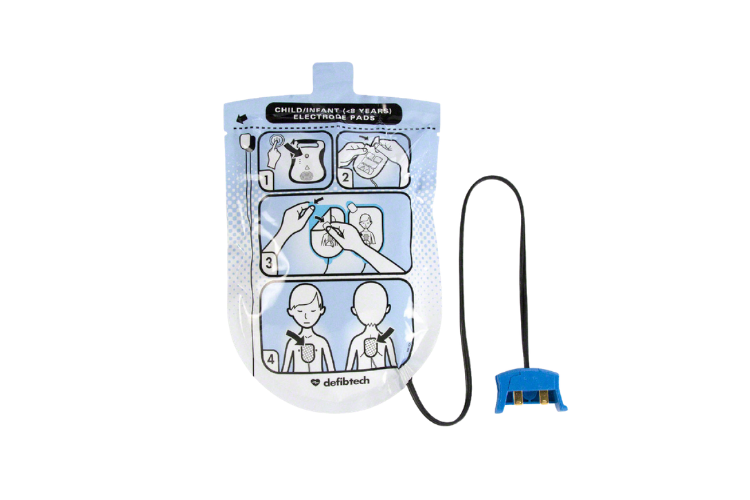

Child / Infant AED pads
DDP-200P
Specially designed pediatric pads for patients under 8 years or less than 25 kg. Anterior / posterior placement.
Standard capacity battery
DBP-1400 — 15V, 1400 mAh
Delivers up to 125 shocks or 8 hours of continuous operation. 5-year standby life. Disposable, recyclable, non-rechargeable.
High capacity battery
DBP-2800 — 15V, 2800 mAh
Extended-life battery for high-deployment environments. Up to 300 shocks or 16 hours of continuous operation. 7-year standby life.
CPR Response Kit
All-in-one rescue kit containing: CPR pocket mask, razor, 15 cm utility scissors, 2 alcohol swabs and a pair of vinyl gloves — everything responders need within reach.

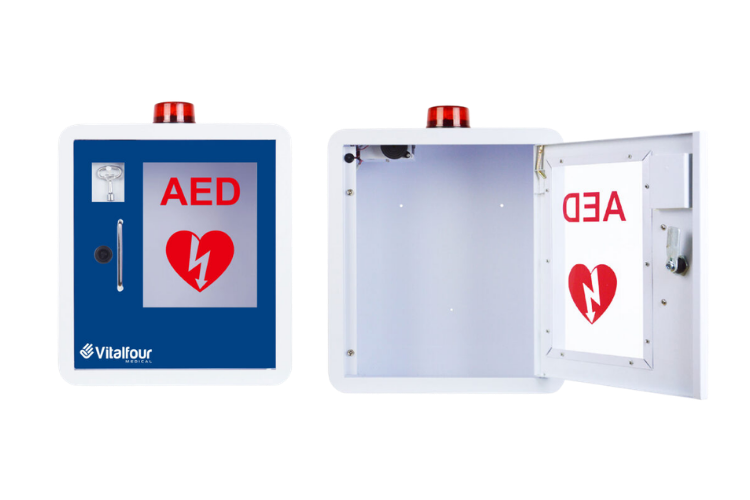

AED Wall Cabinet
High-quality wall cabinet with stainless steel handle, alarm, strobe light and lock. Universal fit for all AED models on the market. 40 × 20 × 36 cm.
Aluminium Triangular AED Wall Signage
180° visibility from down the corridor. Mounts on any flat surface — rust-free, chip- and crack-resistant. 19 × 19 × 20 cm.
CERTIFIED & REGISTERED
MDA-REGISTERED FOR USE IN MALAYSIA
Every Lifeline AED we supply is registered under Malaysia’s Medical Device Act 2012 (Act 737) and carries international compliance marks — supporting facilities, schools, and corporations in meeting their workplace safety requirements.
MDA Malaysia Registered
Registration No. GC456171067718 Valid 26 June 2023 – 25 June 2028 Issued under Akta 737, Section 5(1)
CE 0197 Certified
European Conformity Class IIb medical device
AHA Compliant
American Heart Association Performance recommendations
Not sure where to start? Begin with a free site assessment.
No obligation, no upfront cost. Written recommendation within 5 working days.
